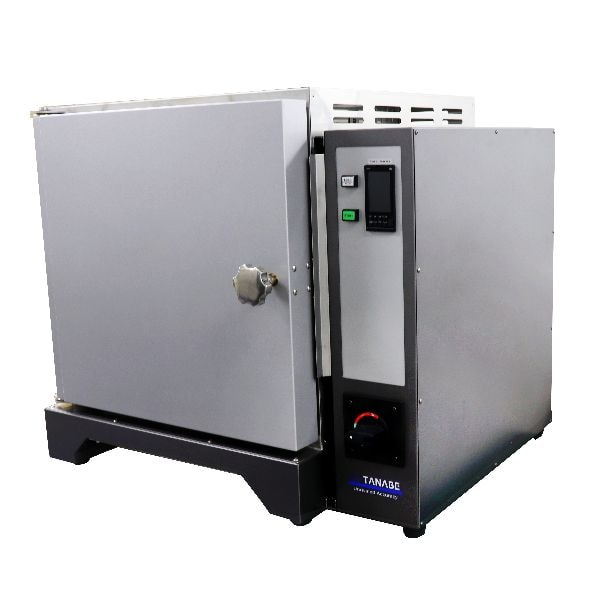

TFL-M1 Burnout Furnace
-High quality casting requires a high quality mold

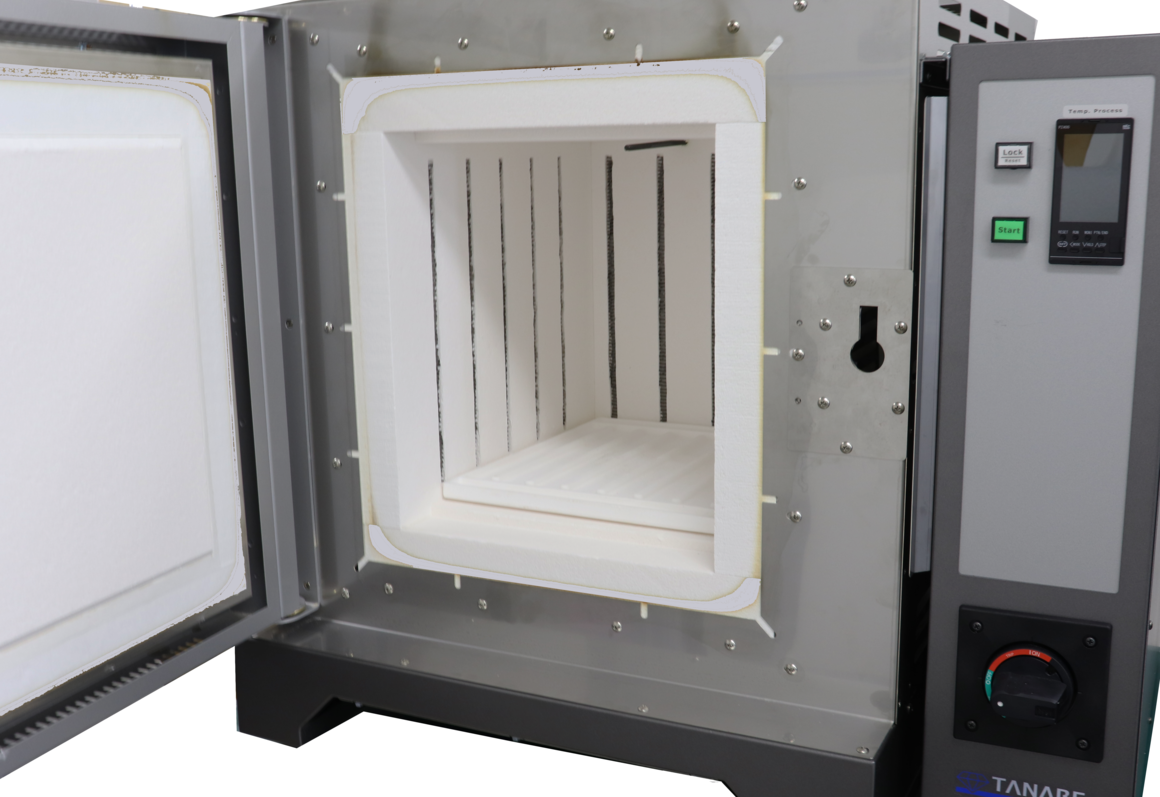

-Expertly designed to allow for even heating of the mold so that wax is completed drained and burnt away

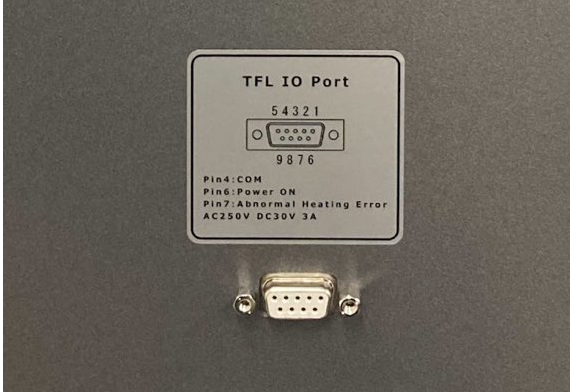

-TFL-M1 is equipped with IO ports to support “Industries 4.0”
| Power | AC240V 1ph 50/60Hz 6.5kVA |
|---|---|
| Size(outside) | 772(W) ×723(D) × 724(H)mm |
| Size(inside) | 300(W) ×350(D) × 330(H)mm |
| Weight | 80kg |

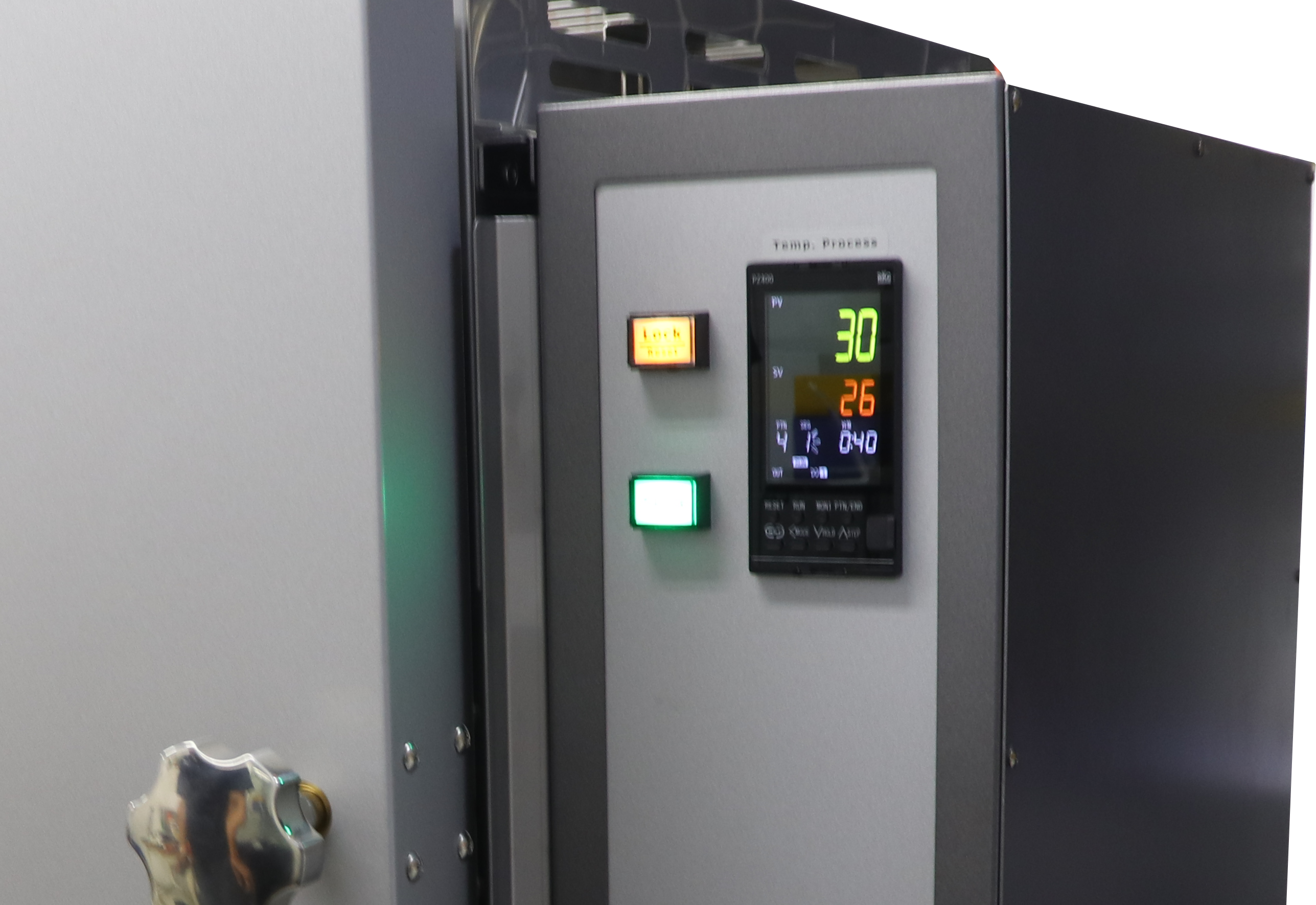

| Heater control | ON/OFF PID |
| Sensor | K（Inconel） |
| Maximum temperature | 1000℃ |
| Program | 16steps x16 patterns |
| Option | Data logger, After-burner |
| Other | Compatible with industrial 4.0 |
