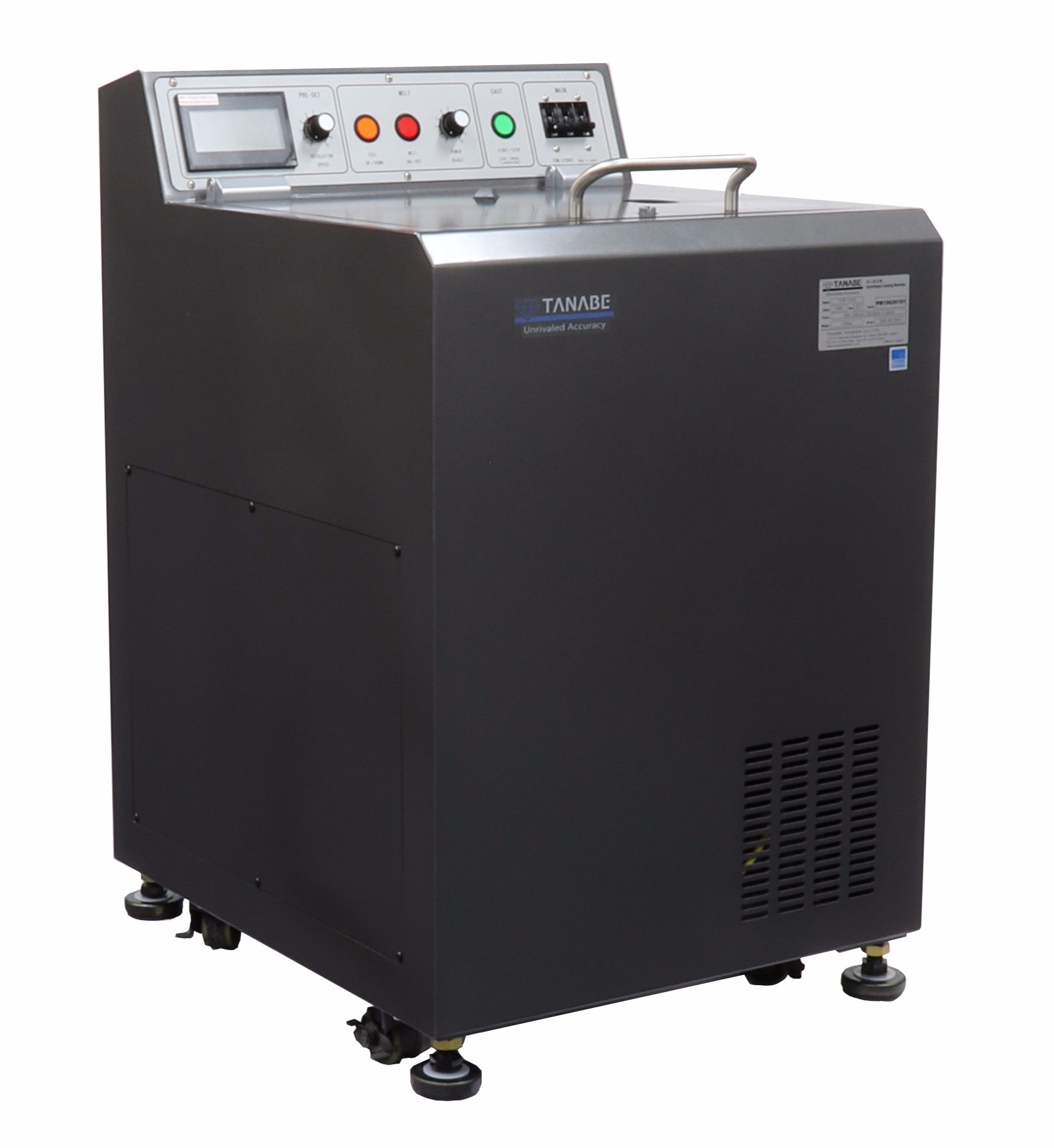

TCM-3100 Centrifugal Casting Machine
-Small yet versatile, the TCM-3100 Centrifugal Casting Machine
-Compact, yet high quality. Cast many kinds of alloys just by changing crucibles
-Easy to operate, even for new users. Good for training, too
-Equipped with a high quality, safe (low frequency) oscillator
-Through two-step control of rotation speed, correctly manages the ideal rotation speed from beginning to end.
-Through the snap-swing arm, achieves the same results as a machine with a larger rotation radius
| Power | AC200V(190V ～ 220V) 3ph 50/60Hz 3.5kVA |
|---|---|
| Size | 520(W) × 660(D) × 840(H)mm |
| Weight | 100kg |
| For use with | Pt Au Ag Bs Cu SUS |
| Oscillator | 3kW |
| Motor | AC 0.4kW *Possible to Rotation control |
| Max Volume | Pt：100g Au：75g Ag：50g（MAX） |
| Mold Sizes | φ76.3ｘ80H |
| Compressed Air | 0.5～0.7MPa |
| Cooling Water | 0.3MPa以上 |
| Ohter | Compatible with industrial 4.0 |

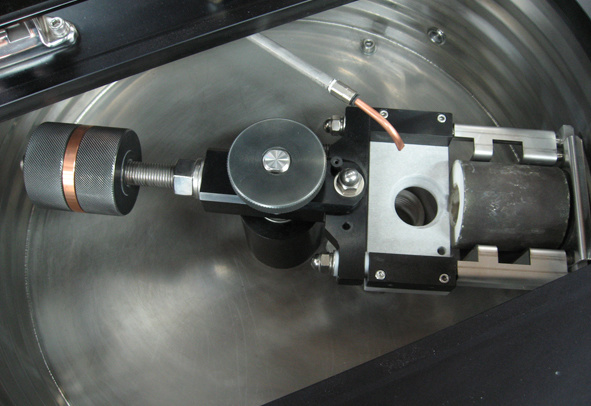

Snap swing arm

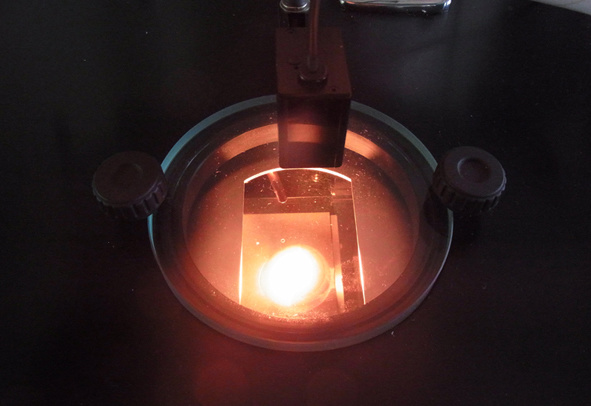

Dissolve

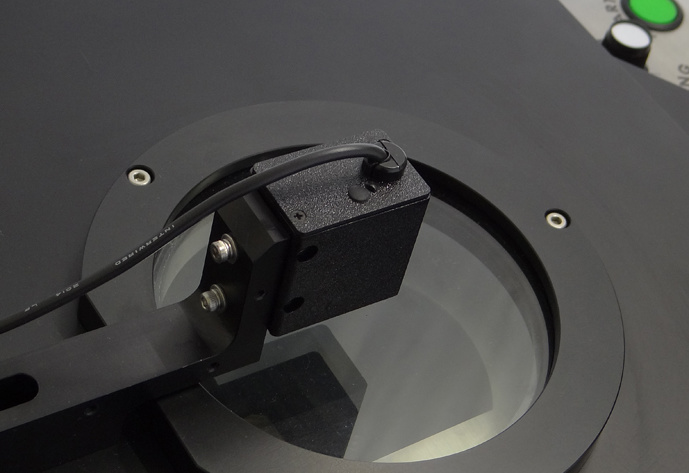

Radiation thermometer (optional)
